Oxbox By Trane 1.5 Ton 15.2 SEER2 R454B Air Conditioner Split System | J5AC5018A1000AA-J5AH5E24A1B00AA-5JAYHTR1A05BKA

SKU: J5AC5018A1000AA-J5AH5E24A1B00AA-5JAYHTR1A05BKA
1.5 Ton15.2 SEER2Electric HeatR454B
$2,845.00
Free Shipping
Full Warranty
Expert Support
Shipping & Delivery
Free shipping on complete systems. Most orders ship within 1–3 business days. Local pickup available at our Ocala, FL warehouse for additional savings.
Warranty Information
All units come with full manufacturer warranty covering parts. Register your warranty within 60 days of purchase for extended coverage.
R-454B Refrigerant 1.5 Ton · 15.2 SEER2 AC 5 kW Heat Kit Included Up to 10-Year Parts Warranty 208/230V Single-Phase

Performance at a Glance

1.5
Ton
Nominal Capacity
15.2
SEER2
Cooling Efficiency
5
kW
Electric Heat
69
dB
Outdoor Sound Rating

A complete Oxbox cooling system for smaller homes, condos, and additions, with heat included. The 1.5 ton condenser and matched upflow air handler handle the summer, and the 5 kW heat strip covers cool mornings and winter nights.

Key Features

This Oxbox 1.5 ton air conditioner split system is rated at 15.2 SEER2, Oxbox's higher efficiency tier. The extra efficiency pays off most where the system runs for much of the year. For heat, the 5 kW electric heat kit mounts inside the air handler and warms air through the same ducts that carry your cooling. This matchup uses the J5AH5E24A1B00AA air handler, an upflow unit with a 1/3 HP blower motor. It is a practical match for smaller homes, condos, and additions, pending a load calculation from your installer. Everything runs on R-454B refrigerant and 208/230V single-phase power, and it's approved for installation in both the DOE North and South regions.

  • Rotary compressor: a compact design that suits smaller-capacity systems like this one.
  • R-454B refrigerant: a lower global warming potential refrigerant that meets current EPA requirements for new systems.
  • 69 dB sound rating: the outdoor unit's published sound level, useful for planning placement near bedrooms, patios, or neighbors.
  • Upflow air handler with built-in evaporator coil: matched to this outdoor unit, with a 1/3 HP blower motor moving air through your ductwork.
  • 5 kW electric heat kit, included: gives you dependable heat from the same air handler, ideal where winters are short and mild.
  • 15.2 SEER2 efficiency: a step above minimum efficiency, which adds up in climates where the AC runs most of the year.

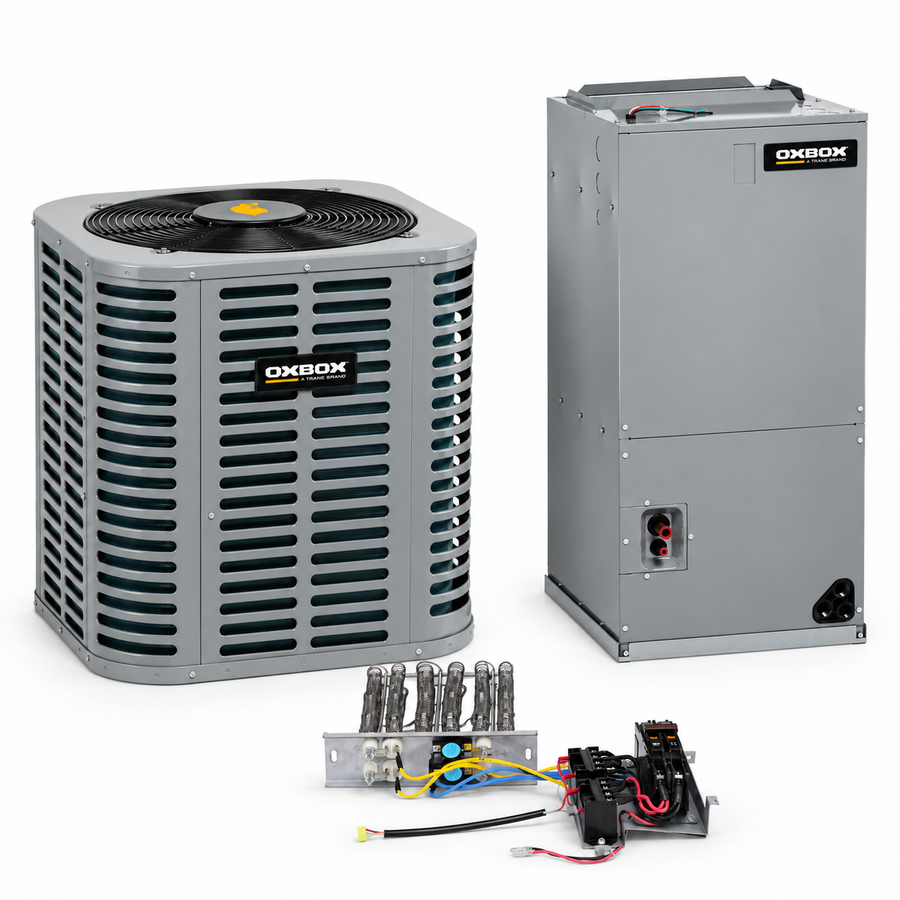

What's Included in This System

Three matched components shipped as one system

1
Outdoor Condenser
J5AC5018A1000AA
The outdoor half of the system. Houses the rotary compressor, outdoor coil, and condenser fan, and rejects the heat pulled from your home.
  • Tonnage1.5 Ton
  • SEER2 Rating15.2
  • CompressorRotary
  • RefrigerantR-454B
  • Sound Rating69 dB
2
Indoor Air Handler
J5AH5E24A1B00AA
Indoor unit with built-in evaporator coil and blower. Moves conditioned air through your ducts and houses the electric heat kit.
  • AirflowUpflow
  • Blower Motor1/3 HP
  • Blower FLA2.6 A
  • RefrigerantR-454B
3
Electric Heat Kit
5JAYHTR1A05BKA
Electric heat strip made for the air handler. Supplies the system's heating, so you get warm air through the same ducts that carry your cooling.
  • Heat Output5 kW
  • Mounts InAir Handler
  • RolePrimary Electric Heat

Specifications

System
System Type Air Conditioner Split System
Nominal Capacity 1.5 Ton
SEER2 Rating 15.2
Refrigerant R-454B
Heating 5 kW electric heat (included)
DOE Regions North & South
Outdoor Unit Electrical
Voltage 208/230V, Single Phase
Minimum Circuit Ampacity (MCA) 12.2 A
Compressor RLA 9.0 A
Compressor LRA 39 A
Condenser Fan Motor 1/6 HP · 0.9 FLA
Indoor Unit & Refrigerant Lines
Air Handler Airflow Upflow
Blower Motor 1/3 HP · 2.6 FLA
Liquid Line 3/8"

Warranty

Backed by Oxbox's manufacturer warranty

5
Year Parts (Standard)
10
Year Parts (When Registered)

Register your system with Oxbox after installation to extend parts coverage from 5 to 10 years. See Oxbox's official warranty documents for complete terms and conditions.

Common Questions

What else do I need for installation?
Plan on a copper line set sized for your run, a condenser pad, an outdoor disconnect, electrical wiring, and a thermostat. Refrigerant work must be done by a licensed HVAC technician.
How does this system heat?
This is an air conditioner, so heating comes from the included 5 kW electric heat strip inside the air handler. It's a simple, reliable setup for areas with short, mild winters. If you heat for much of the year, a heat pump system will usually cost less to run.
Is 1.5 tons the right size for my home?
1.5 tons is a common fit for smaller homes, condos, and additions, but square footage alone isn't a reliable guide. Insulation, windows, sun exposure, and ductwork all matter. A Manual J load calculation from your installer is the best way to confirm sizing before you buy.
How do I get the 10-year parts warranty?
Coverage is 5 years on parts as standard. Register the system with Oxbox after installation to extend parts coverage to 10 years.
