Warranty Information

All units come with full manufacturer warranty covering parts. Register your warranty within 60 days of purchase for extended coverage.

R-32 Refrigerant Single-Stage Scroll 10-Year Parts Warranty 208/230V Single-Phase

Performance at a Glance

4.0

Ton

Cooling Capacity

48,000

BTU/h

Cooling Output

15.2

SEER2

Efficiency Rating

Sound Level

R-32

Refrigerant

Key Features

What sets the GLXS5BA4810A apart

R-32 Refrigerant

Built for R-32, the next-generation residential refrigerant with lower environmental impact than the outgoing R-410A standard. R-32 requires less charge per system and delivers improved thermodynamic performance, helping meet current EPA and AIM Act requirements.

Single-Stage Scroll Compressor

A proven single-stage scroll compressor provides reliable, consistent cooling with fewer moving parts than reciprocating designs. Scroll technology is known for smooth operation, high efficiency, and long service life.

15.2 SEER2 Efficiency

Rated at 15.2 SEER2 under the current M1 testing standard, delivering efficient cooling performance for 4.0-ton residential applications. Pair with a matched indoor coil for AHRI-certified system performance.

Durable Outdoor Construction

Heavy-gauge galvanized steel cabinet with louvered coil guard protects internal components from impact and debris. Designed for long-term outdoor installation in demanding residential environments.

Service-Friendly Design

Single-panel service access, clearly labeled wiring, and standard 3/8" liquid / 1 1/8" suction line connections make installation and maintenance straightforward for your HVAC contractor.

Backed by Goodman

Covered by Goodman's 10-Year Parts Limited Warranty and 10-Year Compressor Limited Warranty when registered within 60 days of installation.

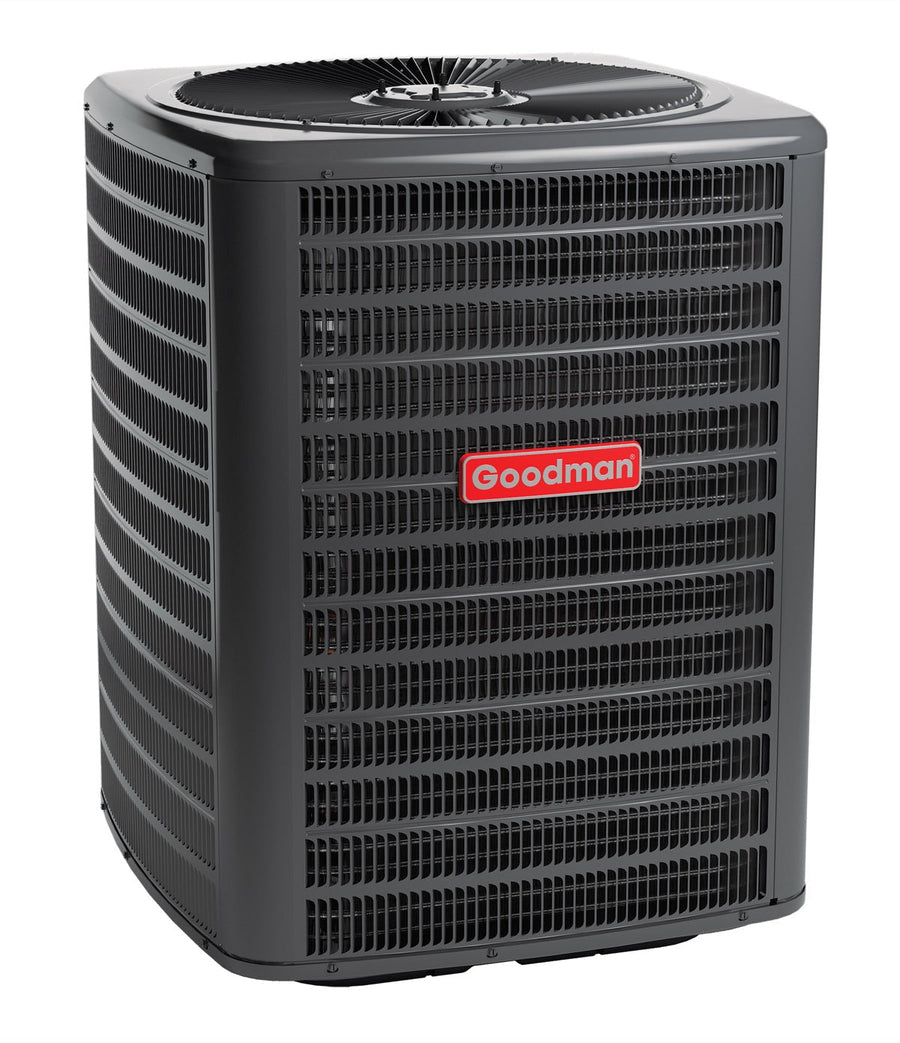

This Goodman GLXS5B air conditioner condenser delivers 4.0 ton of cooling capacity (48,000 BTU) at 15.2 SEER2 efficiency, running on R-32 refrigerant. The cabinet meets 2023 Florida Building Code requirements for hurricane-type winds when properly anchored, and the architectural-gray powder-paint finish is rated for 500-hour salt-spray exposure. AHRI Certified and ETL Listed.

Pre-charged with R-32 refrigerant — factory-charged for 15 feet of line set to reduce installation time.
UL 60335-2-40 compliant top design — removable grille-style top with venturi for increased airflow velocity.
Architectural Gray powder-paint finish — 500-hour salt-spray rating for long-term corrosion resistance.
Florida Building Code compliant — meets 2023 hurricane-wind requirements when properly anchored (anchor bracket kits available).
Copper tube / enhanced aluminum fin coil — 5mm-diameter design improves heat transfer and reduces refrigerant volume.
Factory-installed filter drier — removes moisture and contaminants from the refrigerant circuit at startup.
Steel louver coil guard — protects the coil without restricting airflow.
Top and side maintenance access — single-panel access to controls with space for field-installed accessories.

Why R-32 Refrigerant?

The GLXS5BA4810A uses R-32 — here's how it compares to the outgoing R-410A standard

Feature	R-32 (This Unit)	R-410A (Old Standard)
Energy Efficiency	Up to 10% higher	Baseline
Refrigerant Charge Required	Up to 30% less	Standard
Thermodynamic Performance	Superior heat transfer	Standard
Regulatory Status	Future-ready	AIM Act phase-down

How Quiet Is It?

How the GLXS5BA4810A compares to everyday sounds.

60 dB

Normal Conversation

Quiet indoor setting

This Unit

75 dB

GLXS5BA4810A

Operating sound level

85 dB

Lawn Mower

From 50 ft · Clearly loud

Complete Specifications

GLXS5BA4810A — Goodman 4.0 Ton 15.2 SEER2 R-32 Air Conditioner Condenser

Capacity & Efficiency
Model Number	GLXS5BA4810A
Nominal Cooling Capacity	4.0 Ton
Cooling Capacity (BTU/h)	48,000
SEER2 Rating	15.2
Compressor Type	Single-Stage Scroll
Refrigerant	R-32
Factory Refrigerant Charge	138 oz
Electrical
Voltage	208/230V/1-Phase / 60 Hz
Min / Max Volts	197/253
Minimum Circuit Ampacity (MCA)	25.5 A
Maximum Overcurrent Protection (MOCP)	40 A
Rated Load Amps (RLA)	19.4
Locked Rotor Amps (LRA)	127.7
Condenser Fan FLA	1.3
Conduit Size	1/2" or 3/4"
Line Set & Connections
Liquid Line Size	3/8"
Suction Line Size	1 1/8"
Physical
Equipment Weight	249 lbs
Sound Level	75 dB

Dimensions

36-1/2″

Height

35-1/2″

Width

35-1/2″

Depth

249 lbs

Unit Weight

Warranty Coverage

Protection you can count on when properly registered

Year Parts Limited Warranty

Year Compressor Limited Warranty

Year Unit Replacement Limited Warranty

Warranty terms require online product registration within 60 days of installation. See official Goodman warranty documents for complete terms and conditions.

Frequently Asked Questions

What size home does a 4.0-ton condenser cool?

A 4.0-ton condenser is generally appropriate for homes in the 2,100–2,600 sq. ft. range, though the right size depends on factors like climate zone, insulation, window area, ceiling height, and home orientation. A professional Manual J load calculation is the most accurate way to determine the right capacity for your specific home.

What does SEER2 mean and why does it matter?

SEER2 (Seasonal Energy Efficiency Ratio 2) measures cooling efficiency under the updated M1 testing standard adopted in 2023. A higher SEER2 number means lower electricity costs to deliver the same cooling. The GLXS5BA4810A is rated at 15.2 SEER2, meeting current federal minimum efficiency requirements for residential air conditioners.

What is R-32 refrigerant and why the change from R-410A?

R-32 is the next-generation residential refrigerant replacing R-410A. It has lower environmental impact, requires up to 30% less charge per system, and offers improved energy efficiency. R-32 is being adopted industry-wide to meet EPA and AIM Act requirements phasing down legacy refrigerants.

Can I pair this condenser with my existing indoor coil or air handler?

The GLXS5BA4810A is an R-32 condenser and must be paired with an R-32-compatible indoor coil or air handler. It is not compatible with older R-410A or R-22 coils. For best performance and to maintain AHRI-rated efficiency, pair it with a factory-matched Goodman indoor unit. Your HVAC contractor can confirm compatibility.

Do I need AHRI-certified matching?

The 15.2 SEER2 rating applies to the condenser when paired with specific matched indoor components. Installing the GLXS5BA4810A with a non-matched or mismatched coil can reduce actual efficiency below the rated value, affect warranty coverage, and in some cases may not meet local building code minimums. Always install as part of an AHRI-certified matched system.

How loud is 75 dB in practical terms?

75 dB is typical for a 4.0-ton residential condenser. For reference, normal conversation is around 60 dB, a dishwasher runs around 70 dB, and a gas lawn mower measures around 85 dB from 50 ft. Place the unit away from bedroom windows and patios when possible, and follow Goodman's installation clearance requirements for proper airflow and serviceability.

What maintenance does the condenser need?

Keep the condenser coil clear of leaves, grass clippings, and debris. Maintain at least 24 inches of clearance on all sides for airflow. Have a licensed HVAC technician perform an annual tune-up including coil cleaning, refrigerant charge verification, and electrical inspection. Regular maintenance protects efficiency, extends equipment life, and maintains warranty coverage.

How do I register for the 10-year warranty?

Register the unit online at Goodman's warranty registration page within 60 days of installation. You'll need the model number (GLXS5BA4810A), serial number (found on the data plate), installation date, and installing contractor information. Without registration, the warranty reverts to a shorter base term.

Documents & Resources

Technical literature for the GLXS5BA4810A

GLXS5B R-32 Single-Stage Air Conditioner Specification Sheet (PDF)

Designed, engineered, and assembled in the U.S.A. by Goodman Manufacturing — a member of the Daikin group.
