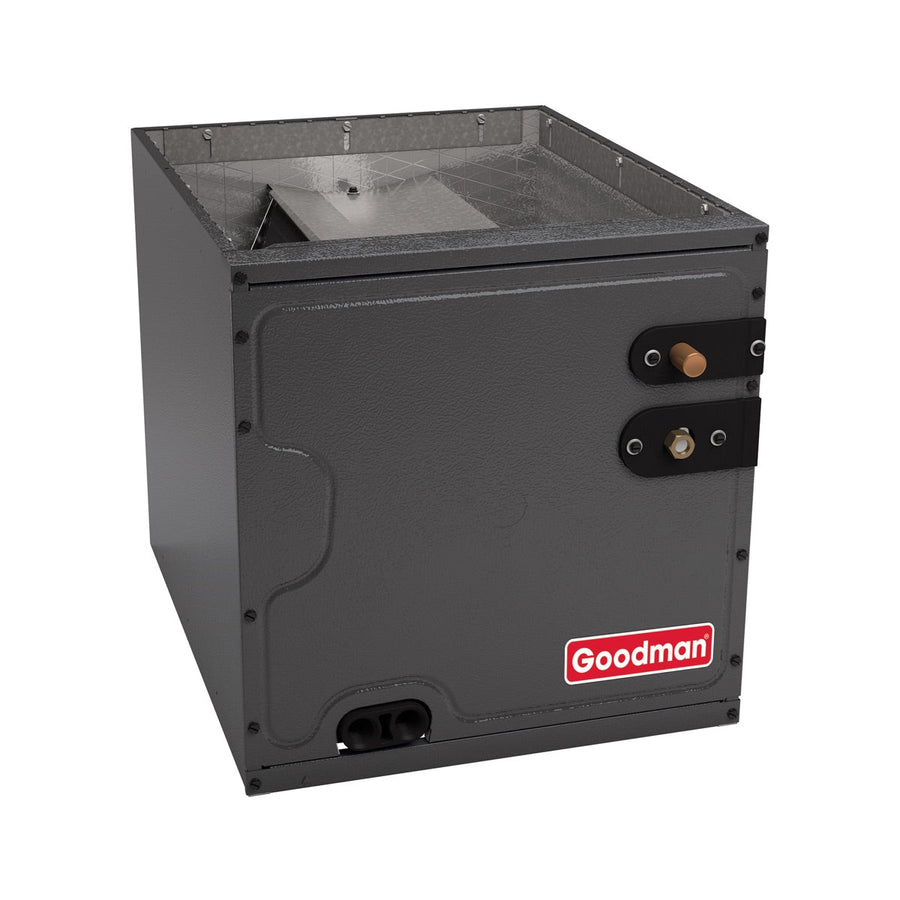

Goodman 1.5-2.5 Ton Vertical Coil (R-32) | CAPTA3026C3A
Manufacturer pricing policy. Add to cart to view your discounted price — no obligation, removable any time.
Shipping & Delivery
Warranty Information
At a Glance
Key Features
What sets the CAPTA3026C3A apart
R-32 Engineered
Optimized for R-32 refrigerant with a factory-installed R-32 refrigerant leakage detection sensor. R-32 is the next-generation residential refrigerant with lower environmental impact than the outgoing R-410A standard.
All-Aluminum Construction
Tubing, fins, and end plates are all aluminum — excellent heat transfer efficiency and inherent resistance to formicary corrosion, a common failure mode in traditional copper-tube coils, especially in humid climates.
Factory-Installed TXV
Comes with a factory-installed thermal expansion valve (TXV) for both cooling and heat pump applications. The TXV automatically meters refrigerant flow for consistent performance across varying load conditions.
Upflow or Downflow Installation
Designed for either upflow or downflow installation, fitting standard furnace and air handler cabinets. The 21" cabinet depth is built for easier access in attic installations.
Thermoplastic Drain Pan
Low water-retention thermoplastic drain pan with secondary drain connections. Foil-faced insulation reduces condensation; drain pan rails allow repositioning without compromising structural integrity.
Backed by Goodman
Covered by Goodman's 10-Year Parts Limited Warranty when registered within 60 days of installation. Galvanized, leather grain-embossed cabinet finish built for long service life.
This Goodman CAPTA vertical evaporator coil is designed for 2.5 ton R-32 systems with a factory-installed thermal expansion valve and an all-aluminum coil. The cabinet uses foil-faced insulation to reduce condensation, and the coil is built with optimized circuits and manifolds for R-32 refrigerant. Available in upflow and downflow configurations with a 21-inch depth for easier attic access.
- Factory-installed TXV — thermal expansion valve included for both cooling and heat pump applications.
- Optimized for R-32 refrigerant — circuits, manifolds, and full-coil R-32 sensor designed for the life span of the coil.
- All-aluminum evaporator coil — lightweight, corrosion-resistant construction with standardized copper suction tube stub length.
- Vertical and horizontal mounting — single front access panel for service in either orientation.
- 21-inch cabinet depth — fits standard attic and closet installations more easily than deeper coils.
- Foil-faced insulation — reduces cabinet condensation in humid environments.
- Galvanized leather-grain finish — rust-resistant cabinet with thermoplastic drain pans.
- DecaBDE-free drain pan — low water-retention design with secondary drain connections.
Why R-32 Refrigerant?
The CAPTA3026C3A is engineered for R-32 — here's how it compares to the outgoing R-410A standard
| Feature | R-32 (This Coil) | R-410A (Old Standard) |
|---|---|---|
| Energy Efficiency | Up to 10% higher | Baseline |
| Refrigerant Charge Required | Up to 30% less | Standard |
| Thermodynamic Performance | Superior heat transfer | Standard |
| Regulatory Status | Future-ready | AIM Act phase-down |
Complete Specifications
CAPTA3026C3A — Goodman 1.5–2.5 Ton Vertical Coil (R-32 Only)
| Model & Configuration | |
|---|---|
| Model Number | CAPTA3026C3A |
| Tonnage Range | 1.5–2.5 Ton |
| Cabinet Size | C (21" wide) |
| Orientation | Vertical — Upflow or Downflow |
| Refrigerant Compatibility | R-32 only |
| Construction | |
| Coil Type | All-aluminum (tubing, fins, end plates) |
| Thermal Expansion Valve | Factory-installed TXV |
| R-32 Leak Detection | Factory-installed refrigerant leakage sensor |
| Drain Pan | Thermoplastic, low water-retention, secondary drain connections |
| Insulation | Foil-faced |
| Cabinet Finish | Galvanized, leather grain-embossed |
| Access | Single front access panel |
| Line Set & Connections | |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Physical | |
| Shipping Weight | 51 lbs |
Dimensions
Warranty Coverage
Protection you can count on when properly registered
Warranty terms require online product registration within 60 days of installation. See official Goodman warranty documents for complete terms and conditions.
Frequently Asked Questions
Designed, engineered, and assembled in the U.S.A. by Goodman Manufacturing — a member of the Daikin group.
