Goodman

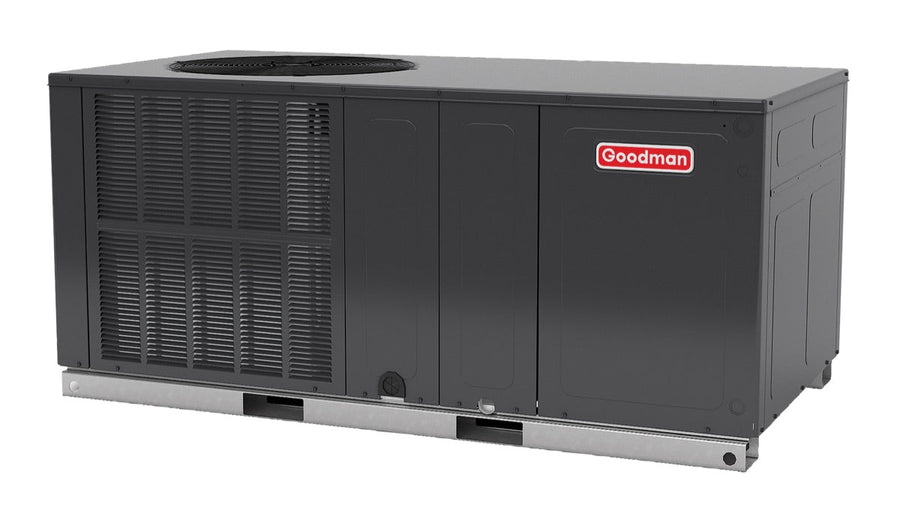

Goodman 3.5 Ton 13.4 SEER2 Mobile Home (R-410A) Electric Package Unit | GPCH34241

SKU: GPCH34241
3.5 Ton13.4 SEER2R-410A
See Price in Cart

Manufacturer pricing policy. Add to cart to view your discounted price — no obligation, removable any time.

Complete Your System
Add compatible components and save on installation
Heat Kit
Thermostat
Adapters
Complete System Total $2,999.00

Select components above · deselect any to exclude

Free Shipping
Full Warranty
Expert Support
Shipping & Delivery
Free shipping on complete systems. Most orders ship within 1–3 business days. Local pickup available at our Ocala, FL warehouse for additional savings.
Warranty Information
All units come with full manufacturer warranty covering parts. Register your warranty within 60 days of purchase for extended coverage.
Packaged Air Conditioner 3.5 Ton · 13.4 SEER2 Cooling System R-410A Refrigerant All-in-One Packaged Unit
Goodman GPCH34241 — 3.5 Ton R-410A Packaged Air Conditioner. A self-contained packaged air conditioning unit rated at 13.4 SEER2 and 10.6 EER2, providing 40,000 BTU/h of cooling capacity. All components — single-stage scroll compressor, condenser coil, evaporator coil, and blower — are housed in a single outdoor cabinet. Operates on 208-230V/1-Phase with factory-charged R-410A refrigerant (78 oz).

Performance at a Glance

40,000
BTU/h
Cooling Capacity
13.4
SEER2
Cooling Efficiency
10.6
EER2
Energy Efficiency Ratio
1300
CFM
Airflow
78
oz R-410A
Factory Charge
375
lbs
Equipment Weight

Key Features

Single-Stage Scroll Compressor

The GPCH34241 uses a single-stage scroll compressor for reliable cooling performance. Scroll compressors have fewer moving parts than reciprocating designs, which can contribute to longer service life.

R-410A Refrigerant

Factory-charged with 78 oz of R-410A refrigerant. R-410A is an industry-standard HFC refrigerant used in residential and commercial HVAC systems.

All-in-One Packaged Design

All components are contained in a single outdoor cabinet — no separate indoor air handler or furnace required. Ideal for homes without attic or basement space for indoor equipment.

208-230V/1-Phase Operation

Operates on 208-230V/1-Phase power. Minimum Circuit Ampacity (MCA): 29.2A. Maximum Overcurrent Protection (MOCP): 45A. A licensed electrician should verify your electrical panel capacity before installation.

Dimensions

Cabinet dimensions for GPCH34241

66"
Width
34"
Depth
35"
Height

Complete Specifications

Verified specifications for GPCH34241

Performance
Nominal Capacity 3.5 Ton
Cooling Capacity 40,000 BTU/h
SEER2 Rating 13.4
EER2 Rating 10.6
Indoor Airflow 1300 CFM
Refrigerant R-410A
Refrigerant Charge 78 oz
Compressor & Motor
Compressor Type Single-Stage Scroll
Compressor RLA 17.9 A
Compressor LRA 112.0 A
Blower Motor FLA 5.4 A
Condenser Fan HP 1/4
Condenser Fan FLA 1.4 A
Electrical
Voltage 208-230V/1-Phase
Min/Max Volts 208/230
MCA 29.2 A
MOCP 45 A
Physical
Dimensions (W x D x H) 66" x 34" x 35"
Equipment Weight 375 lbs
Shipping Weight 387 lbs

Documentation

Manufacturer spec sheets for this product

Package Unit Spec Sheet
PDF — Tap to download

Frequently Asked Questions

What is a packaged air conditioner?
A packaged air conditioner houses all components — compressor, condenser coil, evaporator coil, and blower — in a single outdoor cabinet. Conditioned air is delivered to the home through supply and return ductwork connected directly to the unit. No separate indoor equipment is needed.
Does this unit provide heating?
As shipped, the GPCH34241 is a cooling-only unit. Optional electric heat strip kits can be field-installed to add heating capability. Contact the manufacturer or your HVAC contractor for compatible heat kit options.
What are the electrical requirements?
The GPCH34241 requires 208-230V/1-Phase power. The Minimum Circuit Ampacity (MCA) is 29.2A and the Maximum Overcurrent Protection (MOCP) is 45A. A licensed electrician should verify your panel capacity and install the proper circuit before the unit is connected.
How much does this unit weigh?
The GPCH34241 has an equipment weight of 375 lbs and a shipping weight of 387 lbs. The unit dimensions are 66" W x 34" D x 35" H. Ensure your installation pad or platform can support this weight.
What size home can this unit cool?
A 3.5-ton packaged unit with 40,000 BTU/h of cooling capacity is generally suited for larger homes. Actual coverage depends on climate zone, insulation, window area, ceiling height, and home layout. A professional Manual J load calculation is the proper way to determine the right system size for your home.
What compressor does this unit use?
The GPCH34241 uses a single-stage scroll compressor. Scroll compressors use two interlocking spiral elements to compress refrigerant, resulting in smooth operation with fewer moving parts compared to reciprocating compressor designs.
