Field Controls

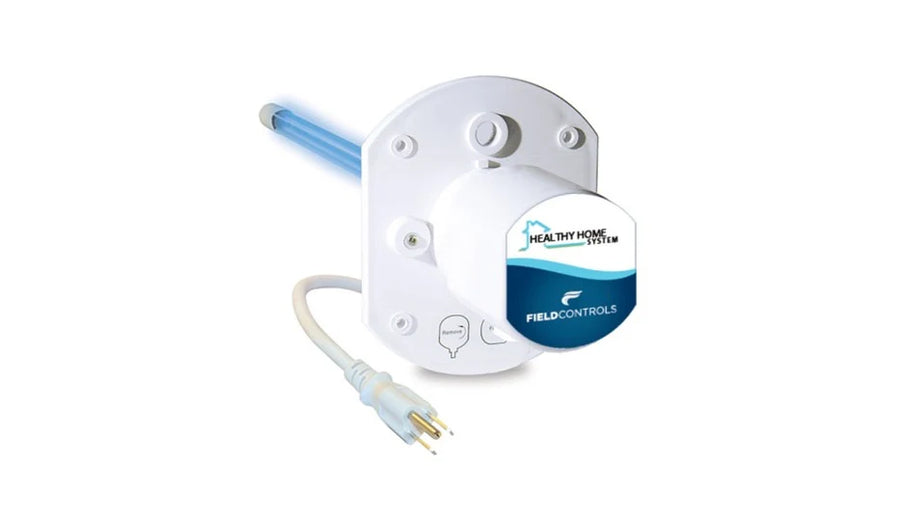

Field Controls UV-Aire In-Duct Air Purifier | 46510800
$149.00
🚚
Order within --:--:-- for Same-Day Shipping in FL!
Have questions? Get help choosing the right HVAC system. Free help sizing your system so you order the right unit the first time. Call today at (352) 438-8992.
Free Shipping
Full Warranty
Expert Support
Shipping & Delivery
Free shipping on complete systems. Most orders ship within 1–3 business days. Local pickup available at our Ocala, FL warehouse for additional savings.
Warranty Information
All units come with full manufacturer warranty covering parts. Register your warranty within 60 days of purchase for extended coverage.
16" UVC Lamp
In-Duct UV Purifier
Fits 1.5 to 5 Ton Systems
120V Plug-In
Performance at a Glance
16
Inch
UVC Lamp
1.5 to 5
Ton
System Compatibility
24/7
Operation
Continuous Treatment
Simple, effective UV treatment for your whole home. The UV-Aire mounts in your ductwork and uses a 16 inch UVC lamp to treat air as your system runs, and it plugs into a standard 120V outlet. It is an easy, affordable add-on to almost any system on our site.
Key Features
The UV-Aire is designed to emit UVC light that reduces airborne viruses and microorganisms as air moves through your HVAC system. It runs around the clock, and when it is placed near the indoor coil it can also help keep the coil cleaner, which supports system efficiency and reduces maintenance.
- 16 inch high-efficiency UVC lamp: treats the air moving through your main supply or return duct.
- Helps keep the coil clean: UV placement near the A-coil can limit growth on the coil surface, supporting efficiency over time.
- Plug-in 120V power: connects to a standard 120V outlet, keeping installation simple.
- Continuous operation: built to run 24/7, so air is treated whenever your system moves it.
- cULus listed: carries the cULus listing mark.
- Serviceable design: replacement lamp (46511200) and ballast are available as separate service parts.
Specifications
| Product | |
|---|---|
| Manufacturer | Field Controls |
| Model | UV-16/120 (UV-Aire) |
| Part Number | 46510800 |
| Type | In-Duct UV Air Purifier |
| Performance | |
| UVC Lamp | 16" |
| System Compatibility | 1.5 to 5 Ton |
| Minimum Duct Width | 16" |
| Operation | Continuous (24/7) |
| Electrical & Service | |
| Voltage | 120V, plug-in |
| Listing | cULus |
| Replacement Lamp | 46511200 |
Common Questions
Where does it go?
It installs in the main supply or return duct of a forced-air system. It needs a closed duct at least 16 inches wide and should not be mounted near a supply or return opening. Because it fits existing ductwork, it is easy to add during a new system install.
Will it work with the system I am buying?
It is sized for forced-air systems from 1.5 to 5 tons, which covers most residential split systems, heat pumps, and air handlers on our site. Add it to your order so it is ready to go in with your new equipment.
UV-Aire or Duo: which should I choose?
The UV-Aire focuses on UV treatment of airborne germs and keeping the coil clean. If you also want help with odors and VOCs, the Duo models add photocatalytic and carbon stages.
What maintenance does it need?
The UVC lamp loses output over time and should be replaced periodically. The replacement lamp is part number 46511200.
