Daizuki
Daizuki 24K BTU 21 SEER2 230V Mini Split Heat Pump | DXTH24X626A-21
SKU:
DXTH24X626A-21
21.0 SEER2Heat PumpR-32
$1,579.00
Free Shipping
Full Warranty
Expert Support
Shipping & Delivery
Free shipping on complete systems. Most orders ship within 1–3 business days. Local pickup available at our Ocala, FL warehouse for additional savings.
Warranty Information
All units come with full manufacturer warranty covering parts. Register your warranty within 60 days of purchase for extended coverage.
Mini Split Heat Pump 21.0 SEER2 Heating & Cooling R-32 Refrigerant 24,000 BTU/h

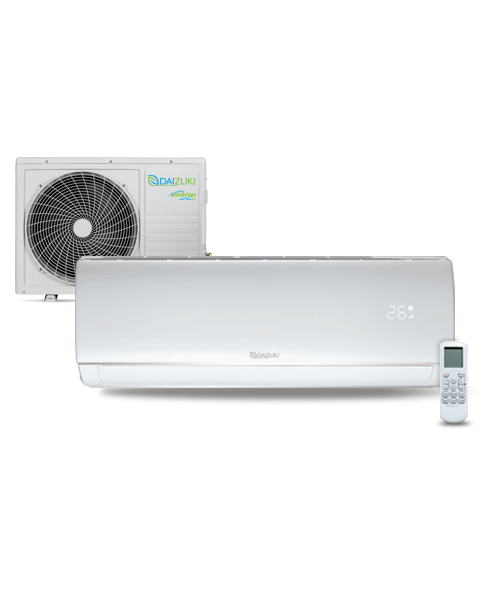

Daizuki DXTH24X626A-21 — 24,000 BTU Mini Split Heat Pump. A ductless mini split heat pump system rated at 21.0 SEER2 and 9.0 HSPF2. Provides both cooling (24,000 BTU/h) and heating (24,000 BTU/h) from a wall-mounted indoor unit and compact outdoor condenser. Operates on 208-230V power with R-32 refrigerant.
Performance at a Glance
24,000
BTU/h
Cooling Capacity
24,000
BTU/h
Heating Capacity
21.0
SEER2
Cooling Efficiency
11.8
EER2
Energy Efficiency Ratio
9.0
HSPF2
Heating Efficiency
588
CFM
Indoor Airflow
What's Included in This System
Two matched components — indoor and outdoor units
1
Indoor Unit (Wall-Mounted)
Wall-mounted indoor evaporator unit. Distributes conditioned air directly into the room.
- Airflow588 CFM
- Dimensions43.15" x 13.11" x 8.74"
2
Outdoor Condenser
Outdoor unit housing the compressor and condenser coil. Connects to the indoor unit via refrigerant lines.
- CompressorRotary
- RefrigerantR-32
- Refrigerant Charge42 oz
- Dimensions36.50" x 14.96" x 27.52"
Complete System Specifications
Verified specifications for DXTH24X626A-21
| Performance | |
|---|---|
| Cooling Capacity | 24,000 BTU/h |
| Heating Capacity | 24,000 BTU/h |
| SEER2 Rating | 21.0 |
| EER2 Rating | 11.8 |
| HSPF2 Rating | 9.0 |
| Indoor Airflow | 588 CFM |
| Refrigerant & Compressor | |
| Refrigerant | R-32 |
| Refrigerant Charge | 42 oz |
| Compressor Type | Rotary |
| Electrical | |
| Voltage | 208-230V |
| Conduit | 4x16AWG |
| Line Connections | |
| Liquid Line | 1/4" |
| Dimensions & Weight | |
| Indoor Unit (W x D x H) | 43.15" x 13.11" x 8.74" |
| Outdoor Unit (W x D x H) | 36.50" x 14.96" x 27.52" |
| Equipment Weight | 114 lbs |
| Shipping Weight | 114 lbs |
| Certifications & Coverage | |
| Efficiency Tier | High Efficiency |
| Region Approved | North, South |
Frequently Asked Questions
What comes in this system?
The DXTH24X626A-21 ships as a complete two-piece system: one wall-mounted indoor unit and one outdoor condenser. Refrigerant lines, electrical wiring, and mounting hardware required for installation are typically supplied by your installer based on your specific installation requirements.
Does this system heat and cool?
Yes. This is a heat pump system providing both cooling (24,000 BTU/h) and heating (24,000 BTU/h). The heat pump moves heat rather than generating it through resistance, making it more energy-efficient than electric strip heating in moderate temperatures.
What voltage does this unit require?
This system operates on 208-230V. The conduit specification is 4x16AWG. A licensed electrician should handle the electrical connection to ensure code compliance.
What is R-32 refrigerant?
R-32 is a lower-GWP (Global Warming Potential) refrigerant replacing R-410A in many residential HVAC applications. It offers improved thermodynamic properties and is part of the industry transition away from higher-GWP refrigerants under EPA and AIM Act regulations.
What size room can this system handle?
A 24,000 BTU system is generally suited for rooms in the 350–550 sq. ft. range, though actual sizing depends on climate, insulation, ceiling height, window area, and sun exposure. A professional load calculation is the best way to confirm the right size for your space.
Is professional installation required?
Yes. Mini split heat pump systems require a licensed HVAC technician to handle refrigerant connections, electrical wiring, vacuum and charge procedures, and mounting. Proper installation ensures system performance and warranty coverage.
